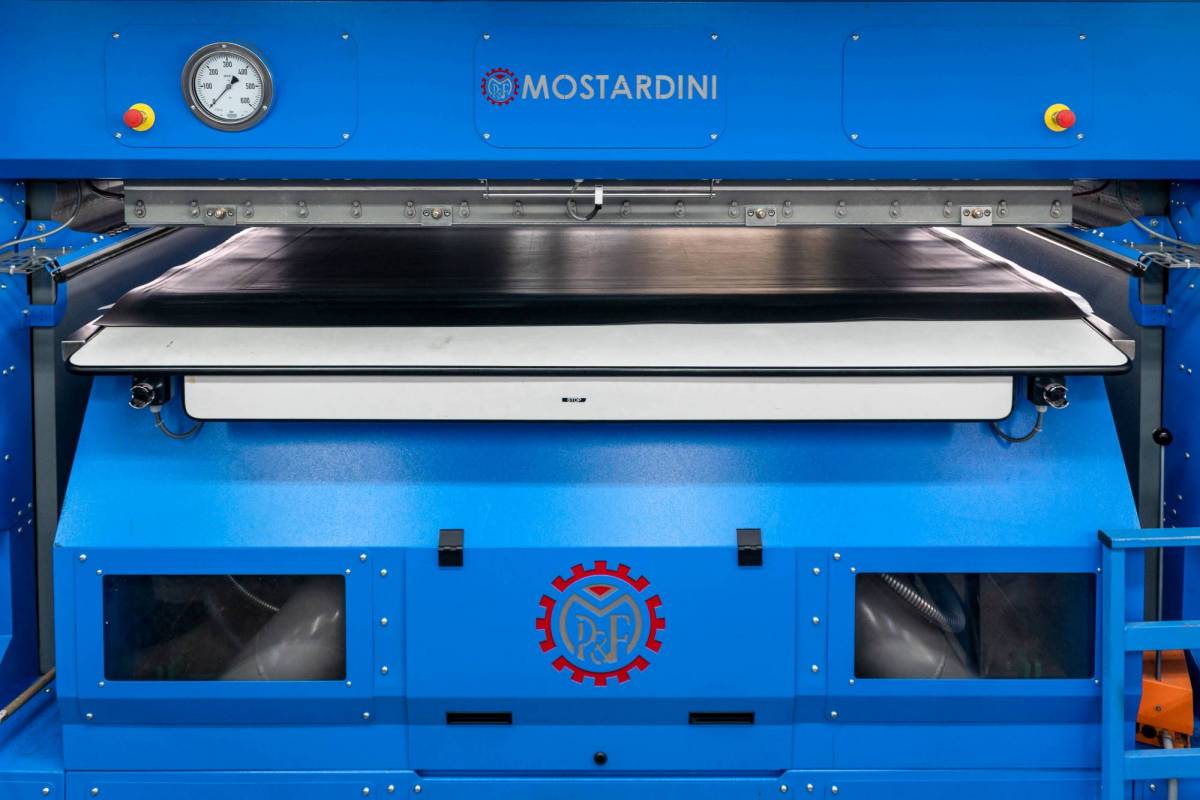

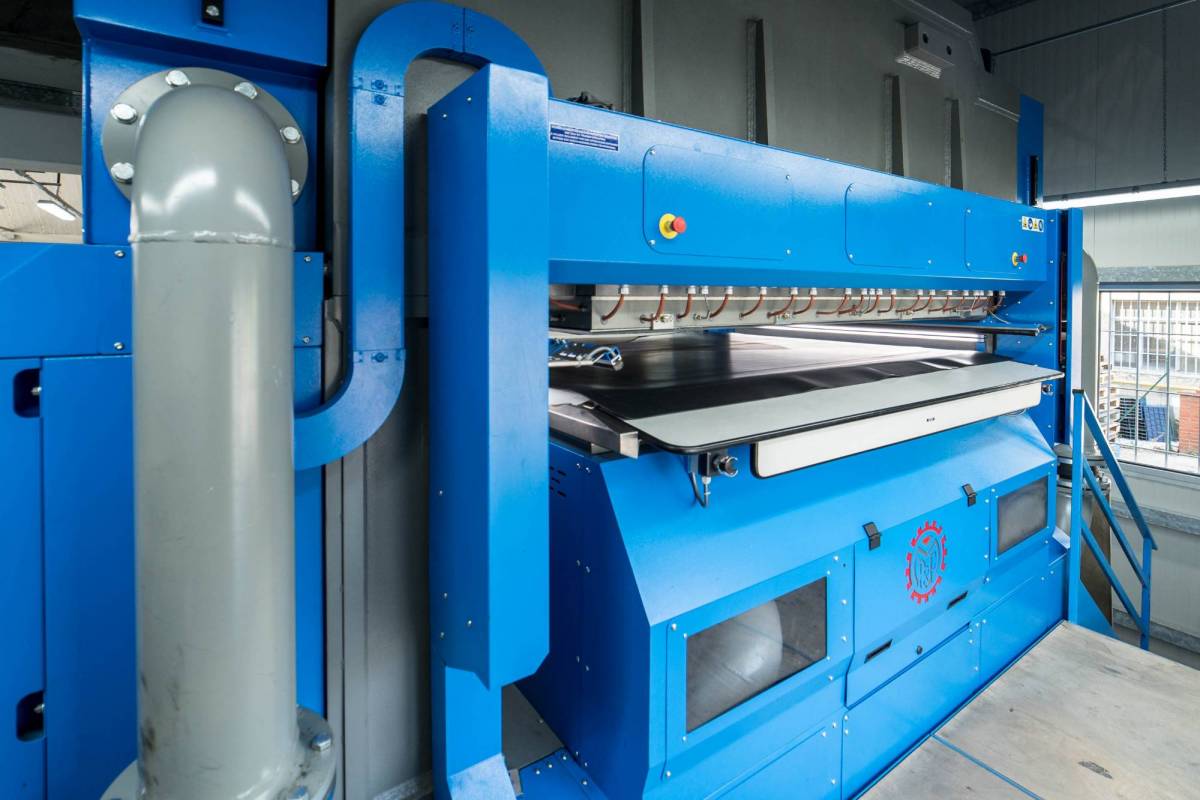

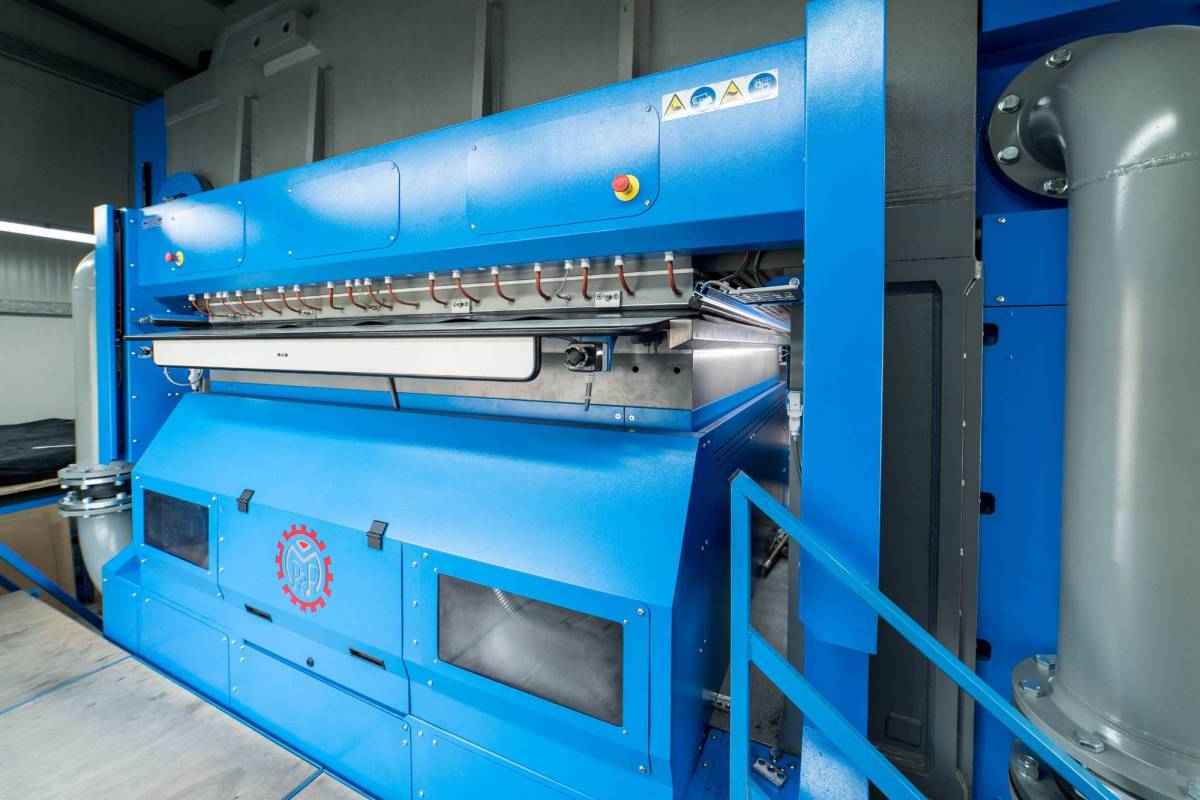

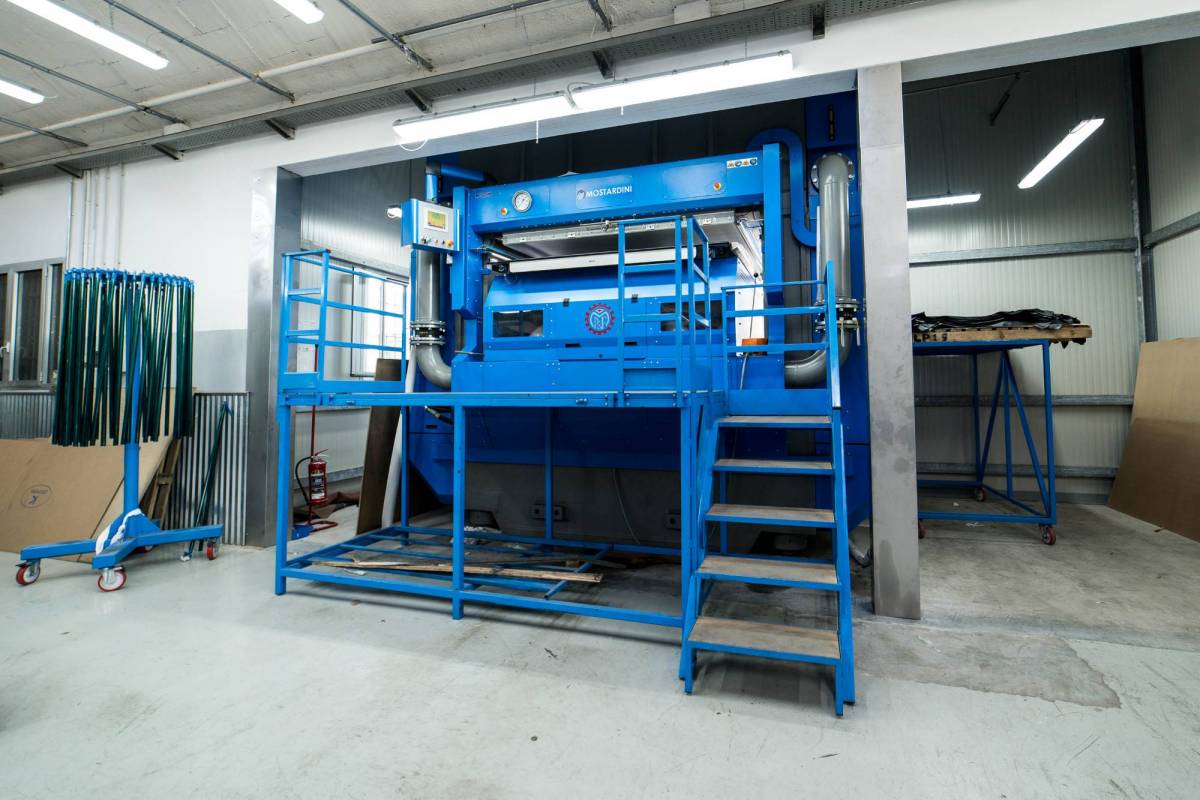

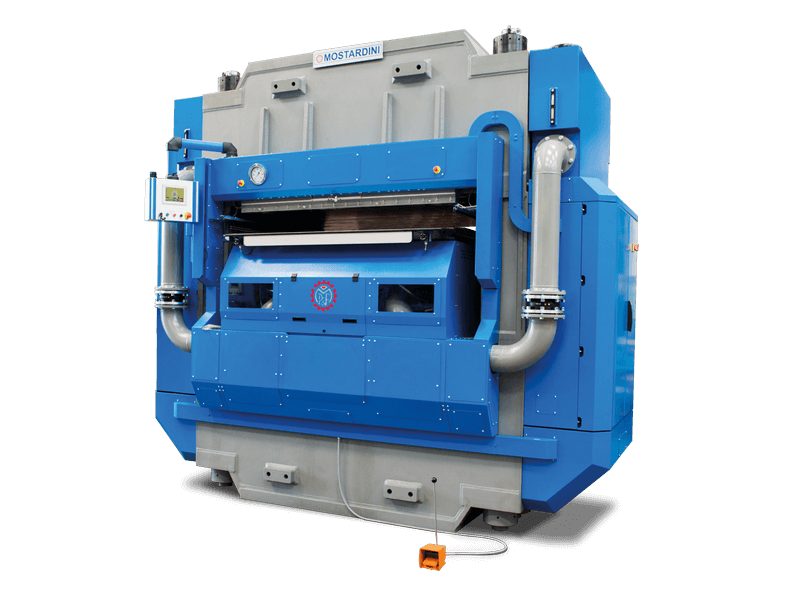

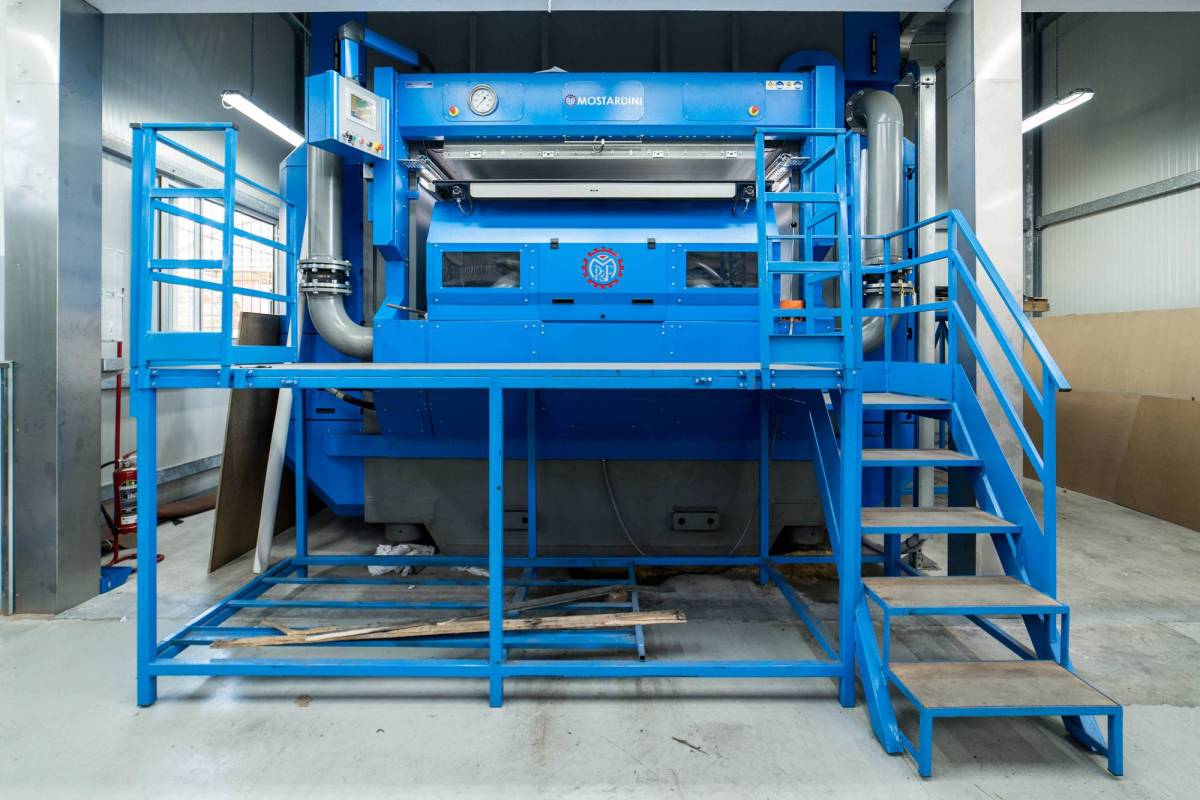

State-of-the-art column-frame press with a total capacity of 3,000 tons.
105,000 kg of high-precision mechanics, with a worktable measuring up to 2.2 m x 1.8 m to increase productivity and finished product quality.
FEATURES:
- Frame of hydraulic press in high resistant steel sheets, made in columns. All structural parts dimensioned and verified at the maximum working pressure using a special program (ANSYS).
- Forged steel cylinder subjected to distention heat treatment and controlled with ultrasound system to ensure durability and reliability at high pressures .
- Cast iron piston with lapped surface.
- Mobile table with rapid up and down movements made through external hydraulic cylinders.
- New hydraulic system for controlling the working pressure and the new quick lifting system capable of allowing an increase in performance and greater energy savings.

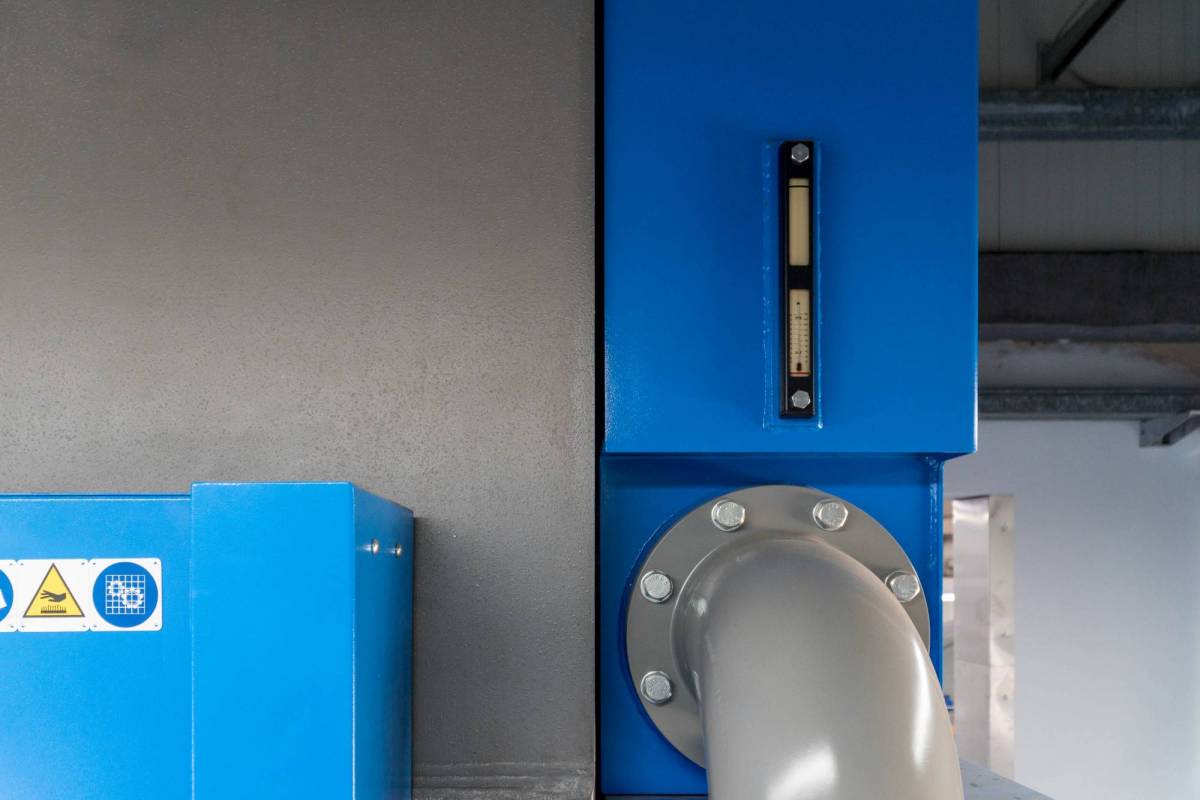

- Hydraulic unit integrated in the body of the press and equipped with oil cooling unit.
- Possibility to control and arrange maintenance in the hydraulic system without having to unload the hydraulic oil system. Easy replacement of the cylinder gasket.
- Possibility to adjust the piston speed.
- Possibility to adjust the movement (end of stroke) of the pistons, according to the thickness of the working plate and the felt pad.
- System that also allows to be brought close the leather to the heating plate without pressure, in order to have an ironing “kiss effect".
- Stroke repeater device (without opening the platens press), necessary to print in depth.

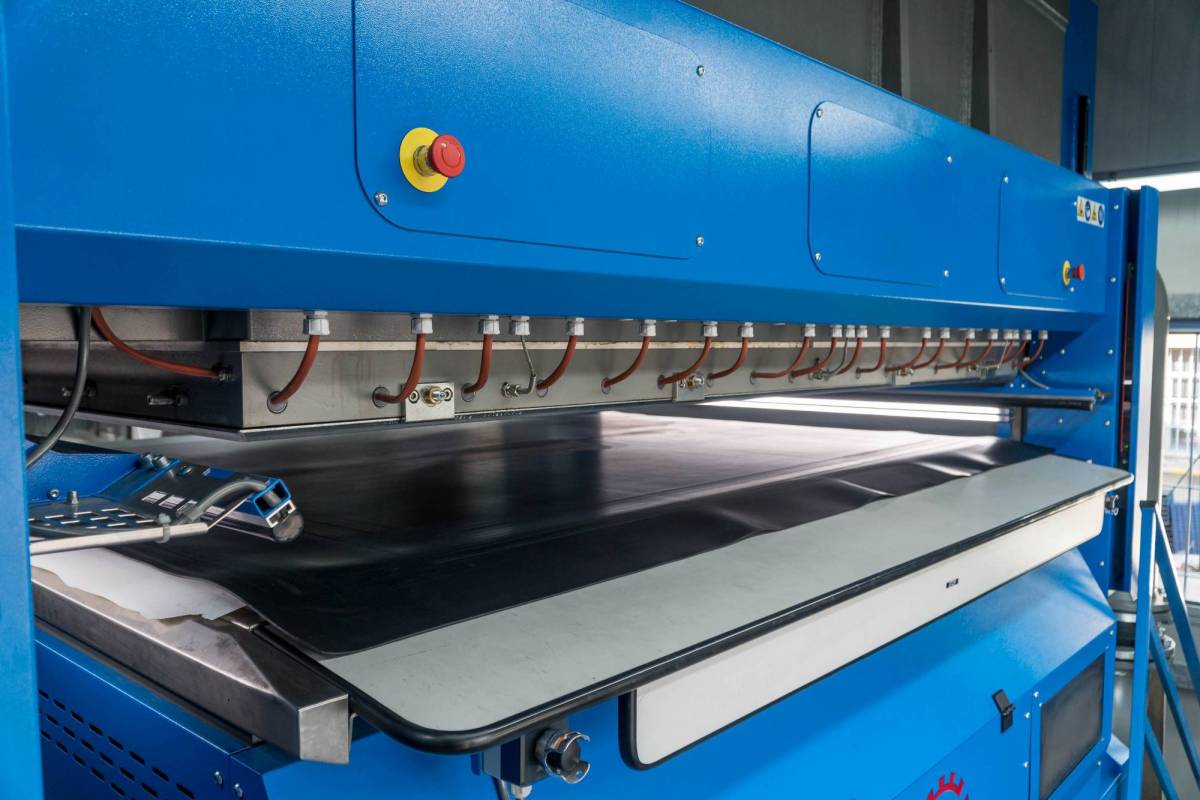

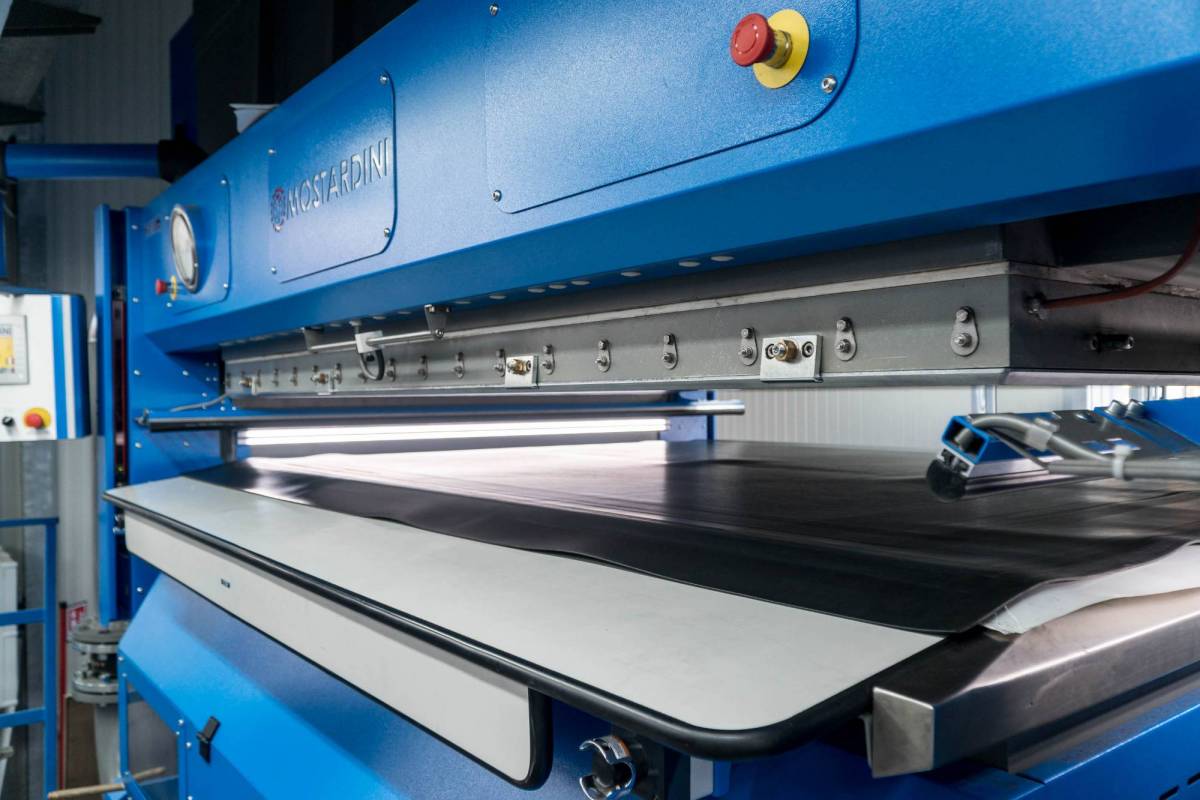

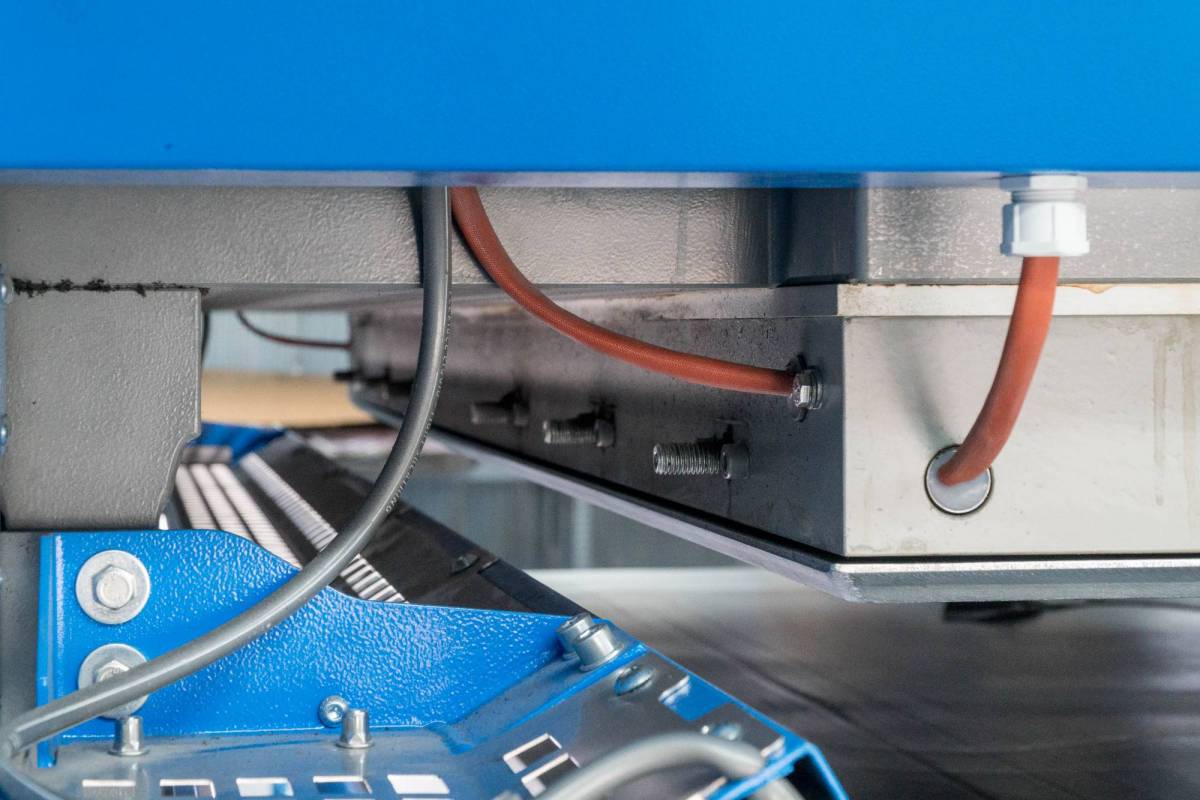

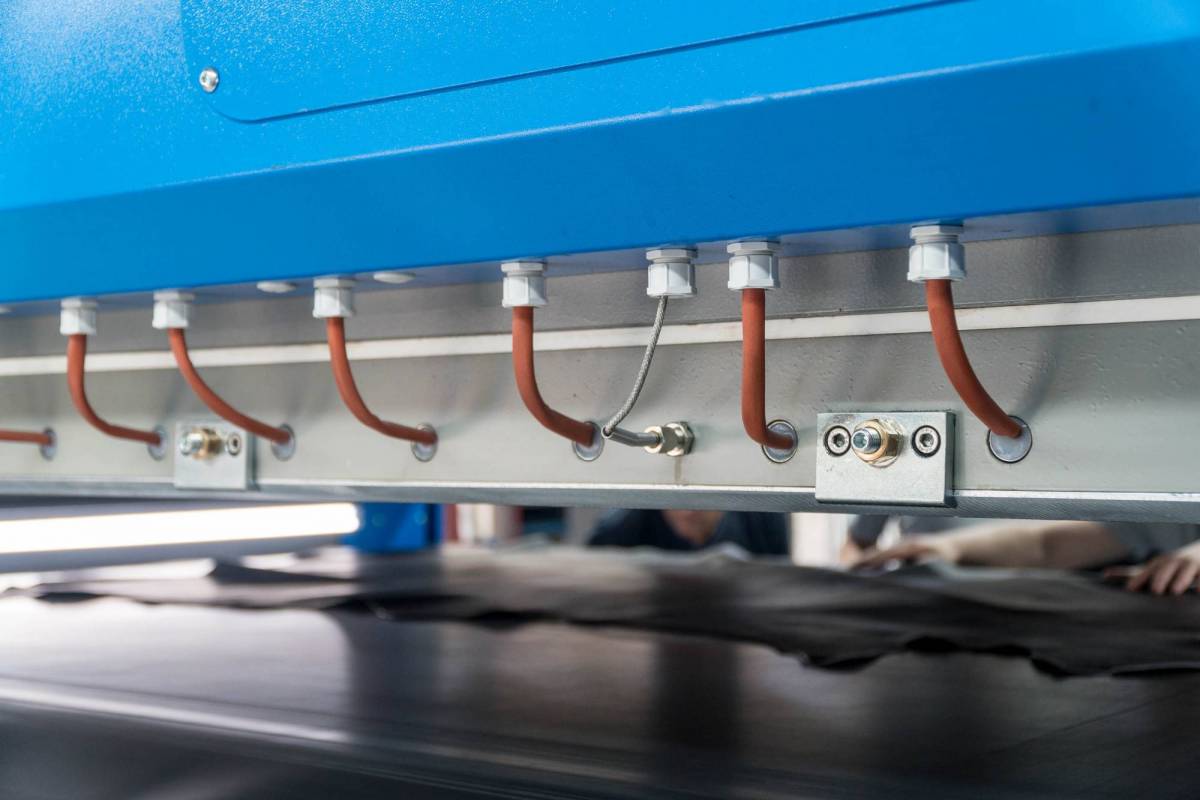

- Electric heating system perfectly uniform over the entire work surface, due to the division into five sectors of the upper plate, independently managed and controlled.
- The upper plate can be heated with diathermic oil or steam and can be cooled with water or oil.

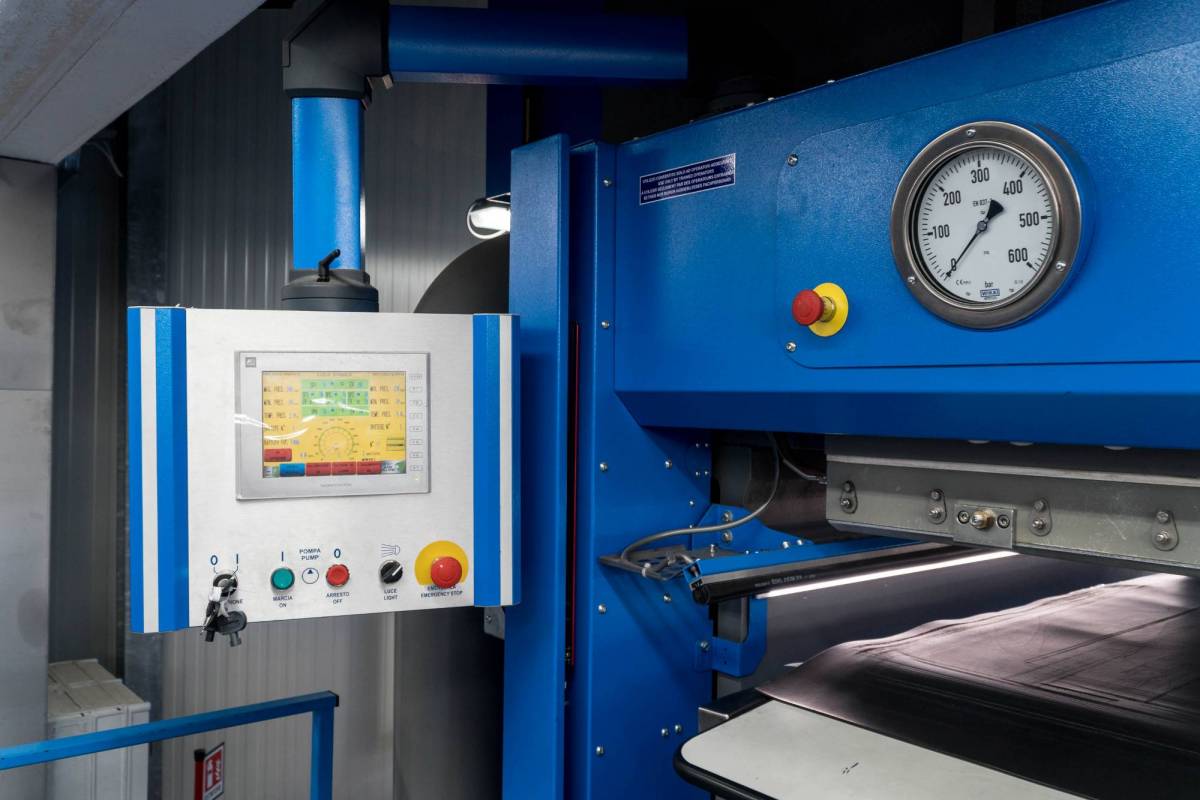

- PLC and Touch-screen panel for programming and control of all parameters ( hydraulic pressure, time of pressure, number of strokes, plate temperatures, heating timer, change of plate, auto- fault diagnosis, ect ) .
- Ability to store common parameters in the files for later recall.
- Configuration with remote assistance of PLC and Touch-screen panel by internet device.
- Integrated electrical panel positioned side of the machine with “book system opening", for easy control and maintenance.

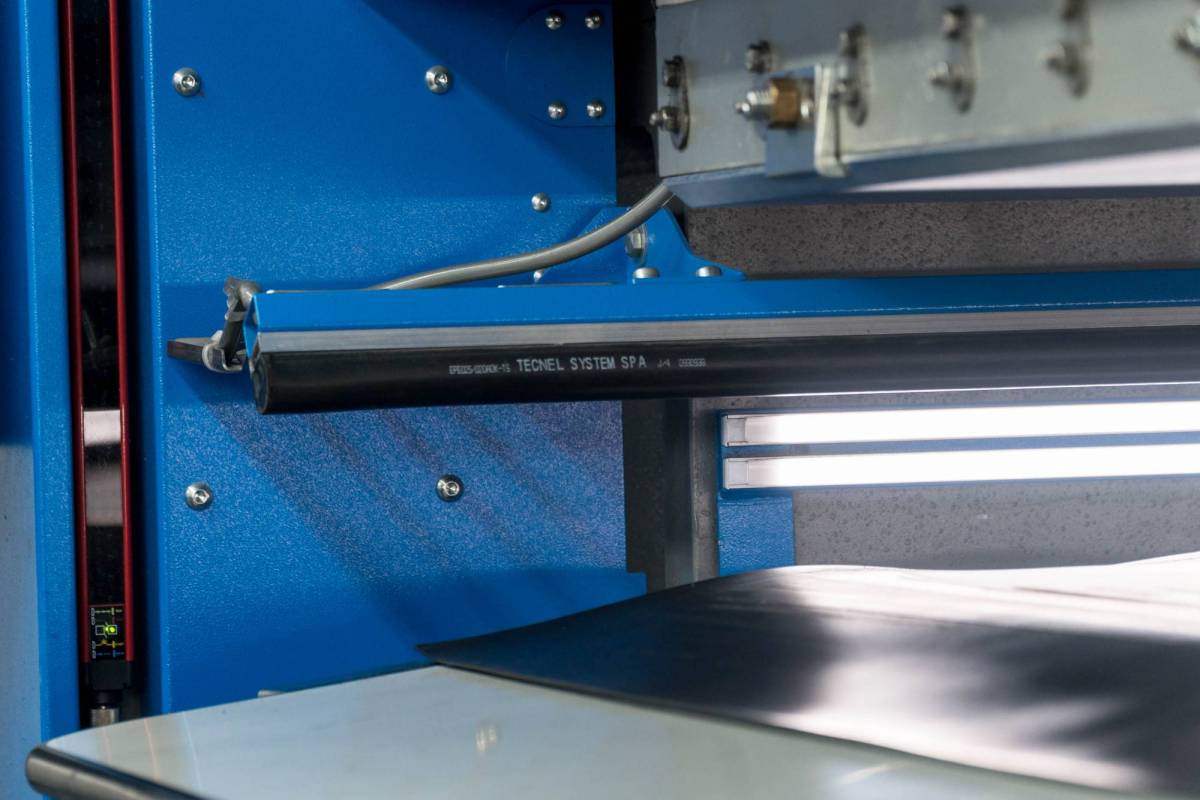

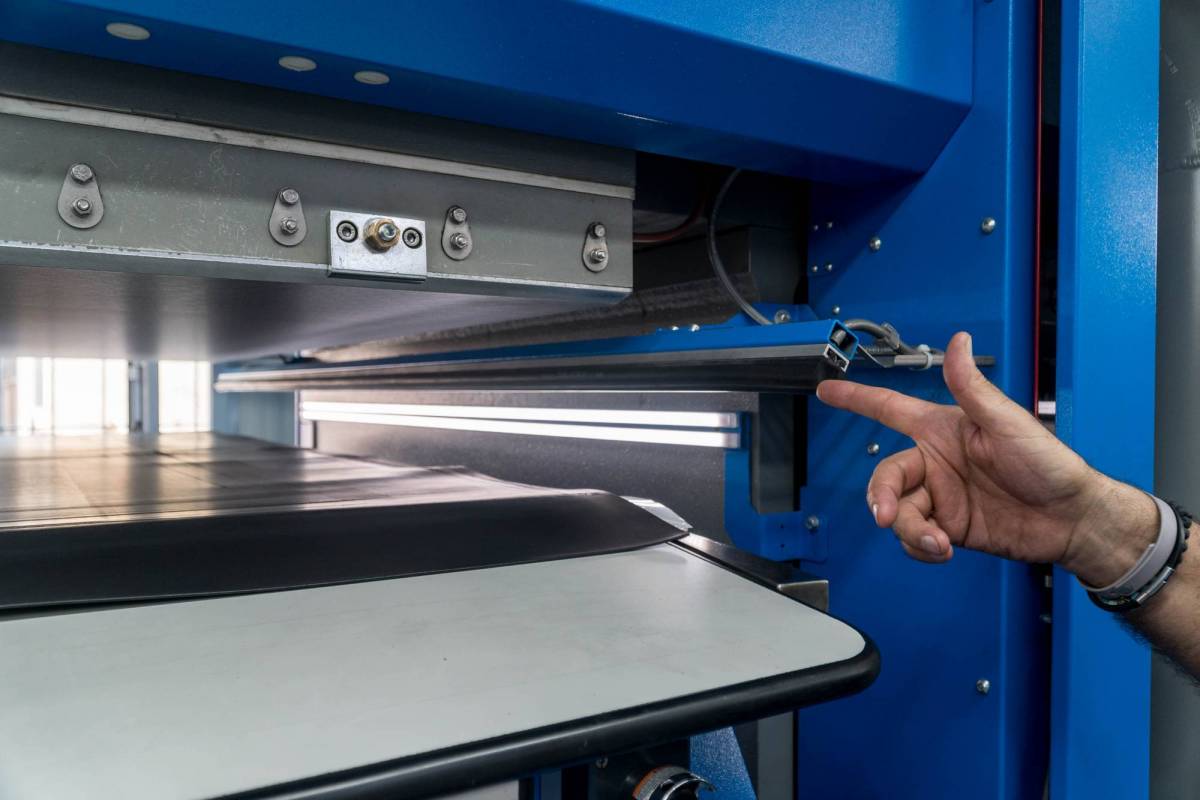

- Safety system made with electronic photocell barriers and sensitive safety profiles around the perimeter of the pressure / danger zone.
- Press control by push button.
- Safety devices meet the highest standard actual requirements.
